AUTHOR ALARM WB 1L KIT: AR 20

AP-0353e
Digital alarm system
Place order
  • Compact size
    Easy and convenient installation, including in confined spaces
  • Anti-carjacking feature
    Protecting your car from hijacking
  • Digital engine blocking
    AUTHOR’s innovations in the field of intelligent vehicle anti-theft protection
  • Description
  • Features
  • Kit
AUTHOR ALARM WB 1L is a unique digital 2CAN-1LIN system designed to protect cars against theft or carjacking. It combines car perimeter control with the technology of blocking the engine via standard electric circuits, which does not require any extra wiring.
AUTHOR AR 20 is an analog relay designed to implement normally-closed or normally-open blocking of the car’s standard electrical circuit.

Key benefits:
  • Advanced algorithms of blocking the engine via standard electric circuits — CAN and LIN buses.There is no need to break control circuits. Remote activation is available.*
  • Intelligent protection of car perimeter — the system alerts the car owner about any attempt to break into the car.
  • Secure authorization via a keyfob, smartphone, or the PIN code entered with the car's standard buttons.
  • Standard indicators on the car's dashboard to ensure stealth of operation.
  • It can work together with other AUTHOR devices via the car's standard wiring — the CAN bus.
  • The system is undetectable with any known methods. Since it is tiny in size, it can be installed almost anywhere in the car.
*It is available only when installed together and paired with the AUTHOR telematic module.
Dimensions
70x16x5 mm
Wire length
0,3 m
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
Compatibility
COMPASS, TOR20, AUTOSTART, KLB, AR20
CAN controller
2
LIN controller
1
Analog inputs
5
Analog outputs
4
Bluetooth controller
No
USB port
No
GSM modem
No
GPS controller
No
GPS antenna
No
Battery
No
Buzzer
Optional
Accelerometer
No
Shock sensor
No
Motion sensor
No
Keyfobs included in the set
0
Operating voltage
8-15 V
Current consumption in the Sleep mode
< 10 mA
Output current
from 100 to 250 mA
Security features
No
Anti-theft feature
Yes
Autostart
No
Detection of coordinates
No
Control via Bluetooth
No
Control of siren
No
Car perimeter protection
No
Configurable input/output
Yes
Operation by schedule
No
Digital control (connection via standard buses)
2xCAN, 1xLIN
Analog control (direct connection)
No
Automatic control (autonomy)
No

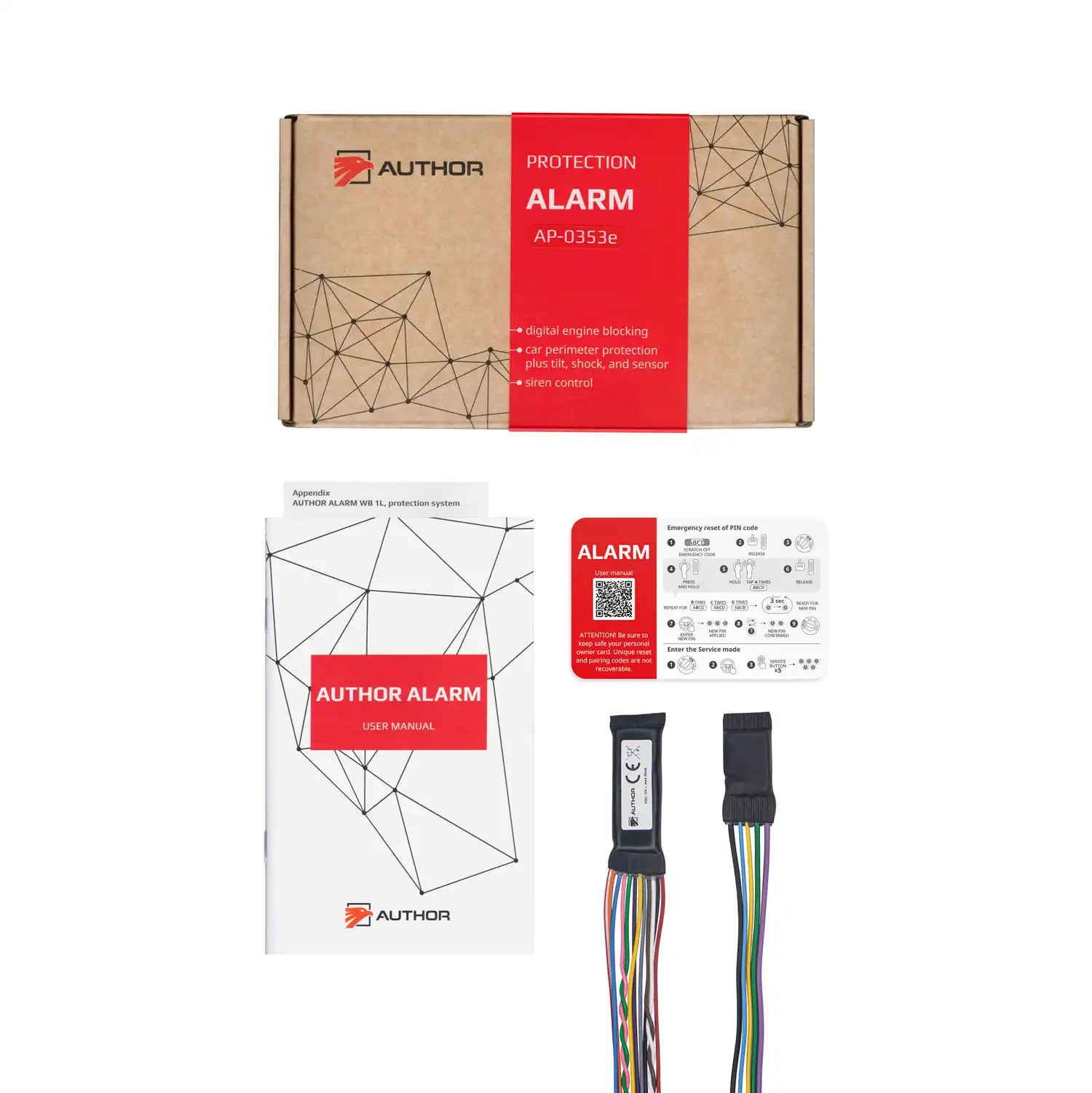

Relay included in the set
AR20
AUTHOR ALARM WB 1L
1 piece
AUTHOR AR 20
1 piece
Personal owner card
1 piece
User manual
1 piece

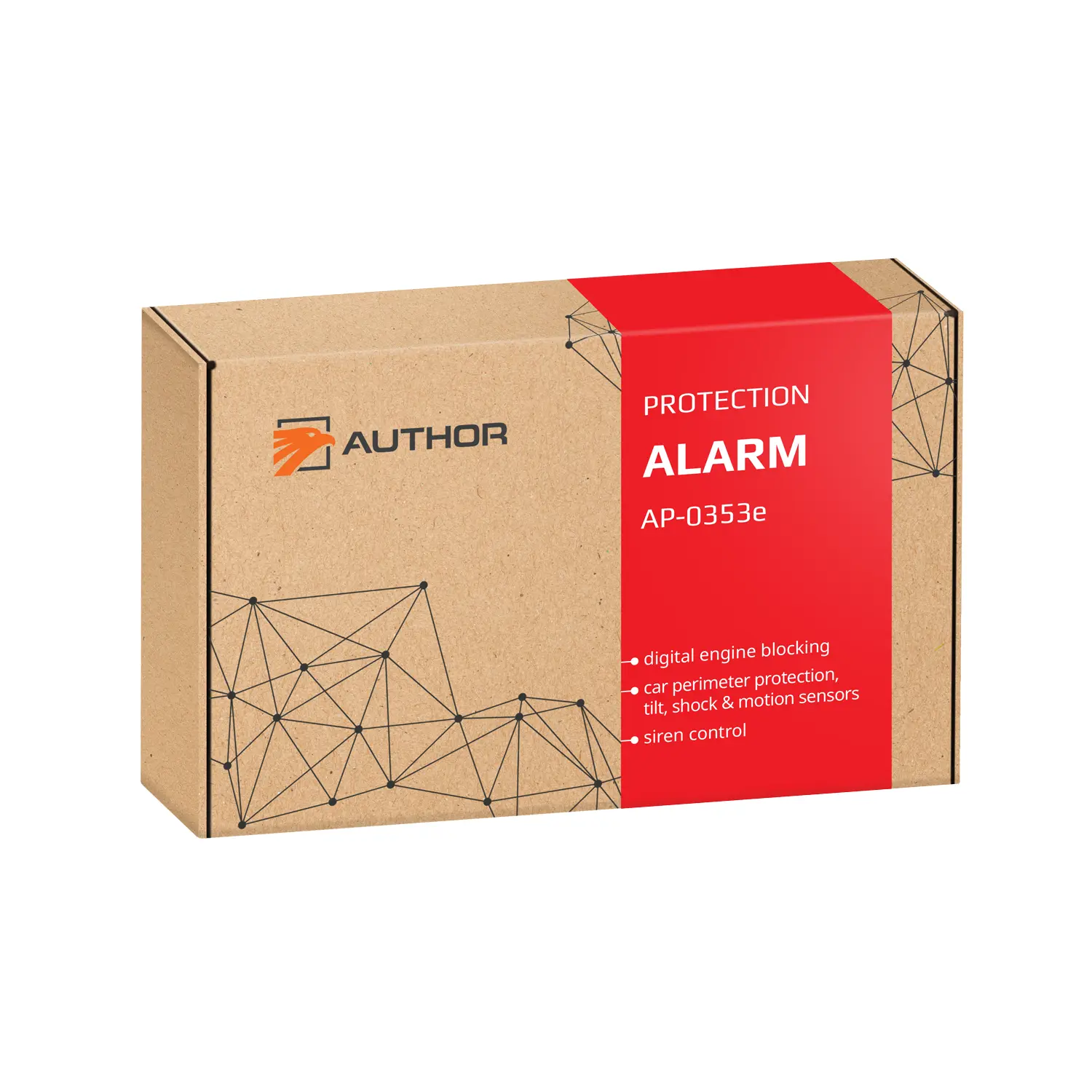

Package
1 piece
