AUTHOR ALARM Kit: AR20+2 KEYFOB
AP-0351e
Digital alarm system
Place order
-
Digital engine blockingAUTHOR’s innovations in the field of intelligent vehicle anti-theft protection -
ModularityFlexible expansion of system functionality by connecting additional devices that are integrated into a single complex -
Siren alarm controlManaging the system for problem situation sound alerts -
Additional blockingStrengthening the security system’s protective properties
- Description
- Features
- Kit
AUTHOR ALARM is a unique digital 2CAN-2LIN system designed to protect cars against theft or carjacking. It combines car perimeter control with the technology of blocking the engine via standard electric circuits, which does not require any extra wiring.
AUTHOR AR 20 is an analog relay designed to implement normally-closed or normally-open blocking of the car’s standard electrical circuit. AUTHOR AR 20 works with a wide
range of AUTHOR anti-theft devices to provide a stronger security and control.
Key benefits:
AUTHOR AR 20 is an analog relay designed to implement normally-closed or normally-open blocking of the car’s standard electrical circuit. AUTHOR AR 20 works with a wide
range of AUTHOR anti-theft devices to provide a stronger security and control.
Key benefits:
- Advanced algorithms of blocking the engine via standard electric circuits — CAN and LIN buses.There is no need to break control circuits. Remote activation is available.*
- Intelligent protection of car perimeter — the system alerts the car owner about any attempt to break into the car.
- The integrated three-axis sensor of shock, tilt, and motion helps you detect any impact on the car.
- Secure authorization via a keyfob, smartphone, or the PIN code entered with the car's standard buttons.
- Standard indicators on the car's dashboard to ensure stealth of operation.
- It can work together with other AUTHOR devices via the car's standard wiring — the CAN bus.
Dimensions
70x16x5 mm
Wire length
0,3 m
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
Compatibility
COMPASS, TOR20, AUTOSTART. IGLA, KLB, AR20
CAN controller
2
LIN controller
2
Analog inputs
5
Analog outputs
4
Bluetooth controller
Yes
USB port
No
GSM modem
No
GPS controller
No
GPS antenna
No
Battery
No
Buzzer
Optional
Accelerometer
Yes
Shock sensor
Yes
Motion sensor
Yes
Keyfobs included in the set
2
Operating voltage
8-15 V
Current consumption in the Sleep mode
< 10 mA
Output current
from 100 to 250 mA
Frequency
2,4 GHz
Security features
Yes
Anti-theft feature
Yes
Autostart
No
Detection of coordinates
No
Control via Bluetooth
Yes
Control of siren
Analog/ Wireless
Car perimeter protection
Yes
Configurable input/output
Yes
Operation by schedule
No
Digital control (connection via standard buses)
2xCAN, 2xLIN
Analog control (direct connection)
No
Automatic control (autonomy)
No
Relay included in the set
AR20

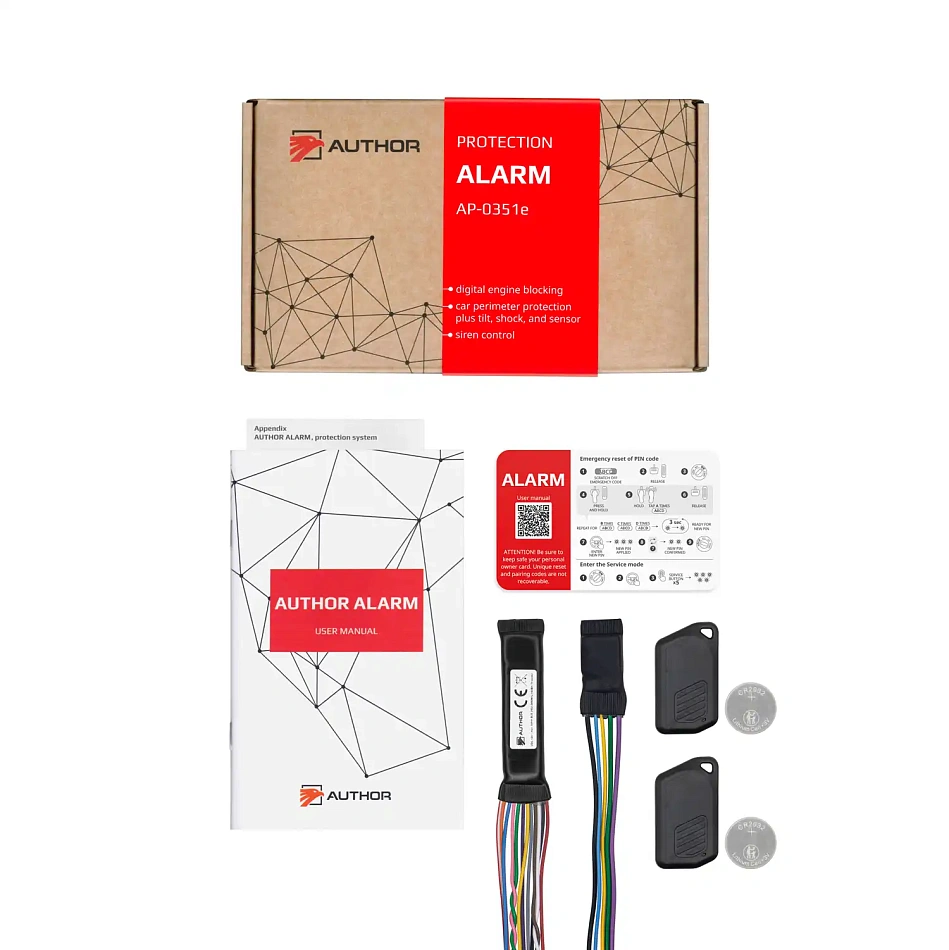

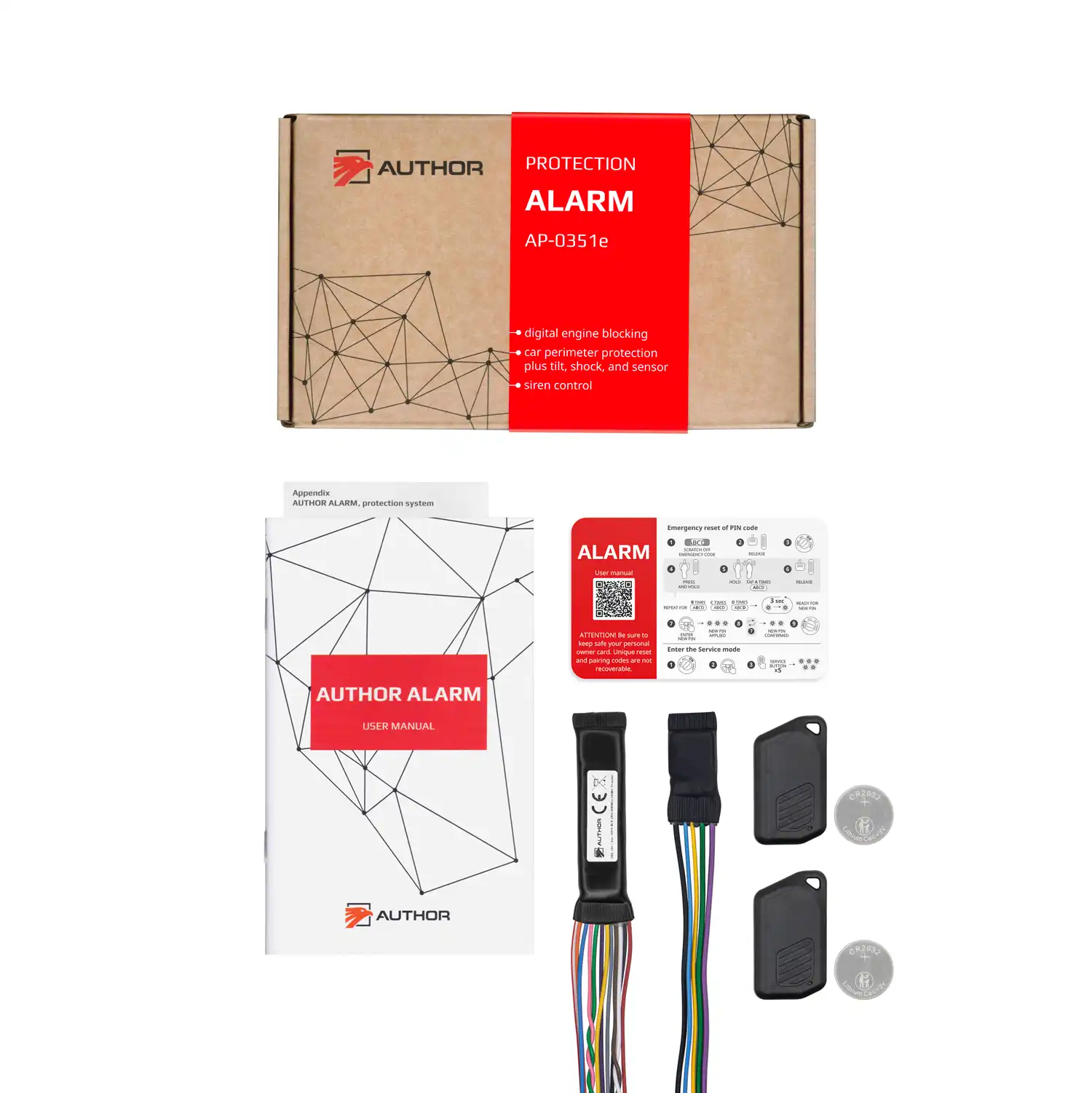

AUTHOR ALARM
1 piece
AUTHOR AR 20
1 piece
AUTHOR KEYFOB
2 pieces
CR2032 battery
2 pieces
Personal owner card
1 piece
User manual
1 piece

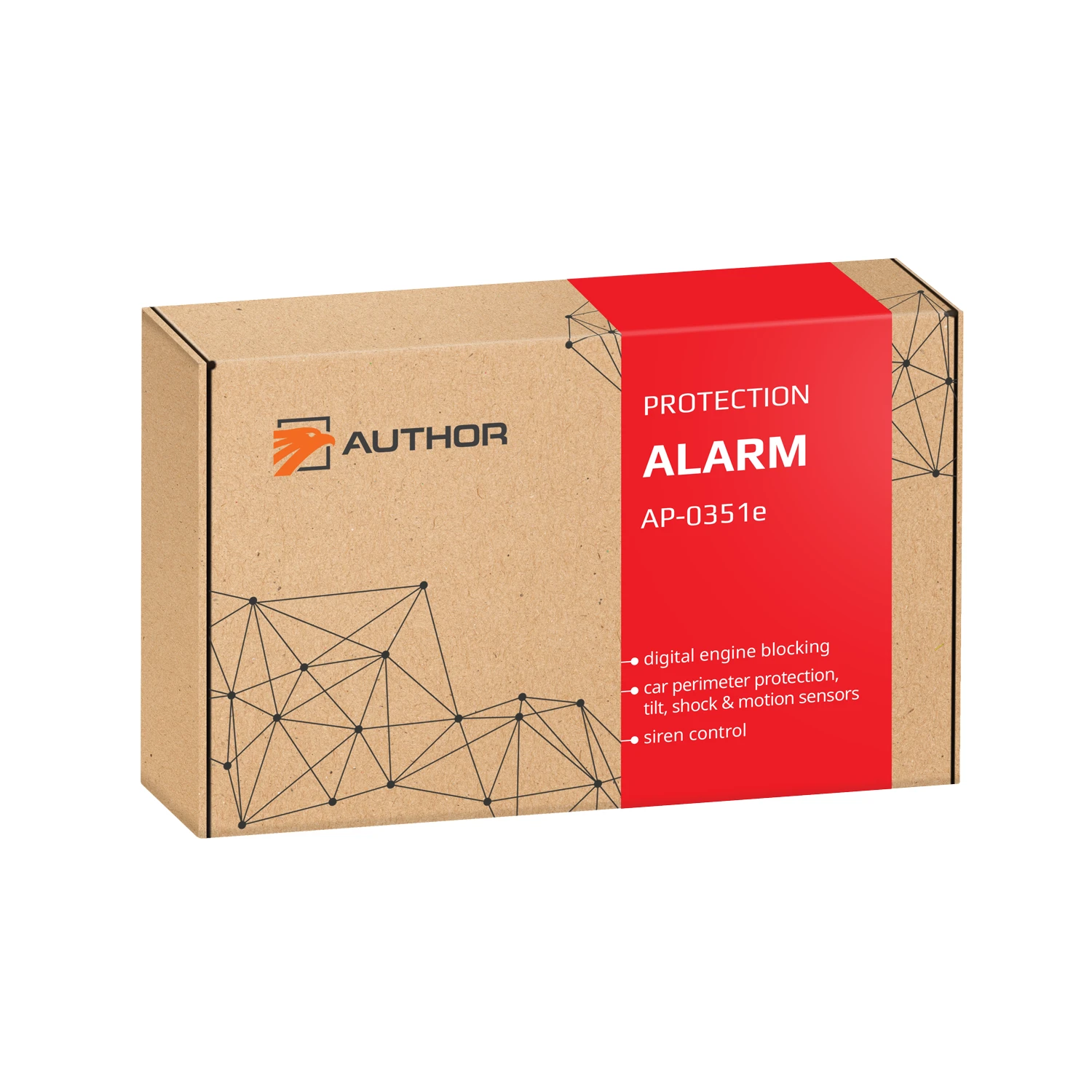

Package
1 piece
