AUTHOR ALARM FD KIT: AR20 + 2xKEYFOB
AP-0350e
Place order
-
Support for the CAN FD protocolSupport for the modern CAN FD data transfer protocol for modern and advanced cars. -
Digital blocking via CAN and LIN busesMulti-level blocking via CAN and LIN buses, which cannot be bypassed. -
Car perimeter protectionDoor, hood, and trunk control when the car is parked, as well as immediate notifications if the car's perimeter is violated. -
Auxiliary analog blockingThe auxiliary AR 20 analog relay is included in case digital blocking is unavailable. -
Keyfobs included in the setAuthorization via included keyfobs makes the process seamless while maintaining security. -
Anti-carjackingProtection against theft attempted by force or intimidation
- Description
- Features
- Kit
AUTHOR ALARM FD is a cutting-edge digital anti-theft security system with support for the modern CAN FD protocol. It is designed to protect cars against theft and carjacking. The system combines intelligent car perimeter protection and digital engine blocking via CAN and LIN buses, without the need to interfere with standard electrical circuits. The system is compatible with the most modern car models.
AUTHOR AR 20 is an analog relay designed to implement normally-closed or normally-open blocking of the car’s standard electrical circuit.
AUTHOR AR 20 works with a wide
range of AUTHOR anti-theft devices to provide a stronger security and control.
Key benefits:
AUTHOR AR 20 is an analog relay designed to implement normally-closed or normally-open blocking of the car’s standard electrical circuit.
AUTHOR AR 20 works with a wide
range of AUTHOR anti-theft devices to provide a stronger security and control.
Key benefits:
- Support for the high-speed CAN FD protocol ensures compatibility with new car models, stable operation with modern electronic systems, and higher data exchange rates.
- Advanced algorithms of blocking the engine via standard electric circuits — CAN and LIN buses. There is no need to break control circuits.
- Intelligent protection of car perimeter — the system alerts the car owner about any attempt to break into the car.
- The integrated three-axis sensor of shock, tilt, and motion helps you detect any impact on the car.
- Secure authorization via a keyfob, smartphone, or the PIN code entered with the car's standard buttons.
- Standard indicators on the car's dashboard to ensure stealth of operation.
- It can work together with other AUTHOR devices via the car's standard wiring — the CAN bus.
Dimensions
70x16x5 mm
Wire length
0,3 m
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
CAN controller
2
LIN controller
2
Analog inputs
5
Analog outputs
4
Bluetooth controller
Yes
USB port
No
GSM modem
No
GPS controller
No
GPS antenna
No
Battery
No
Buzzer
Optional
Accelerometer
Yes
Shock sensor
Yes
Motion sensor
Yes
Keyfobs included in the set
2
Operating voltage
8-15 V
Current consumption in the Sleep mode
< 10 mA
Output current
from 100 to 250 mA
Frequency
2,4 GHz
Security features
Yes
Anti-theft feature
Yes
Autostart
No
Detection of coordinates
No
Control via Bluetooth
Yes
Control of siren
Analog/ Wireless
Car perimeter protection
Yes
Configurable input/output
Yes
Operation by schedule
No
Digital control (connection via standard buses)
2xCAN, 2xLIN
Analog control (direct connection)
No
Automatic control (autonomy)
No

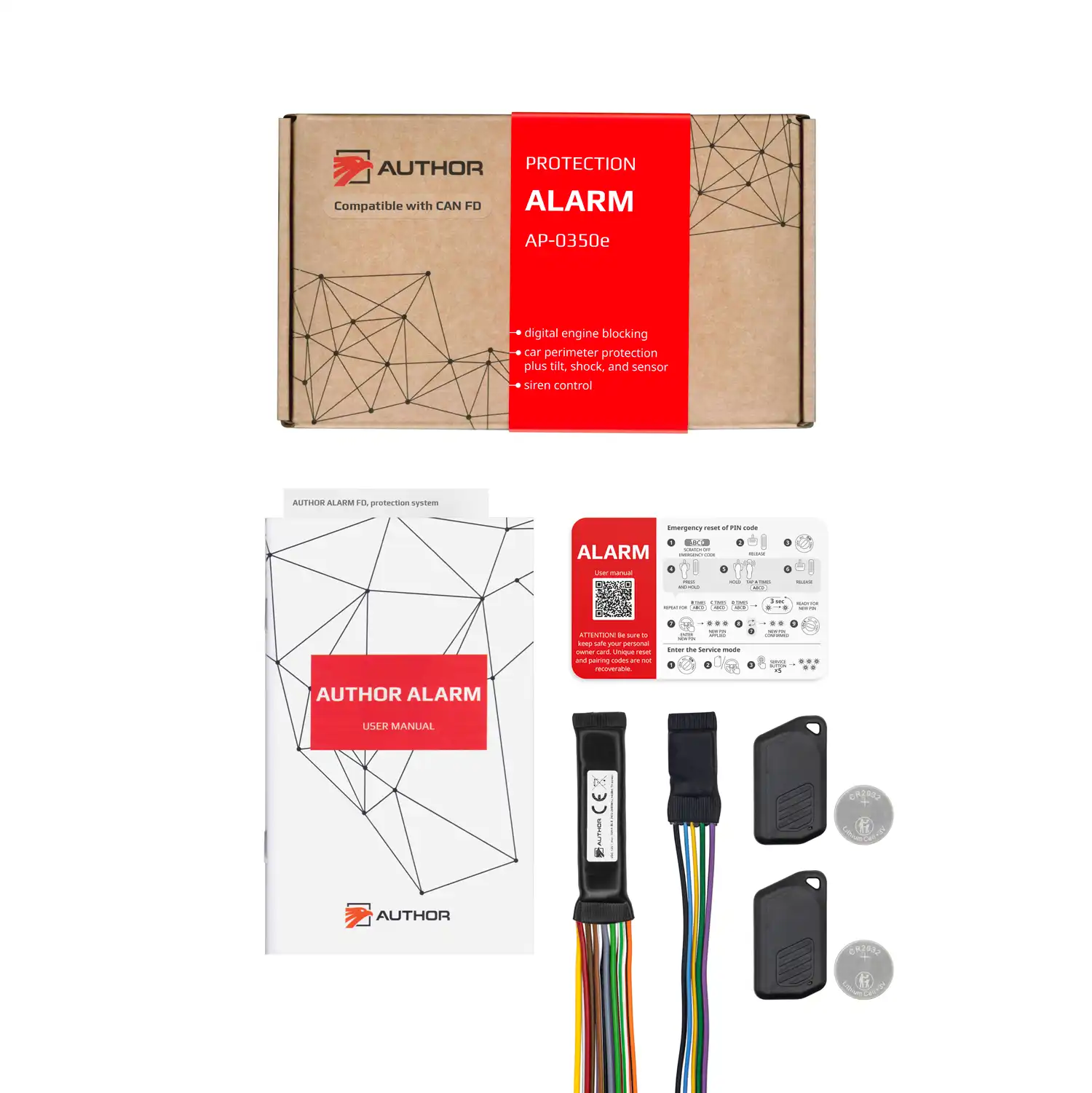

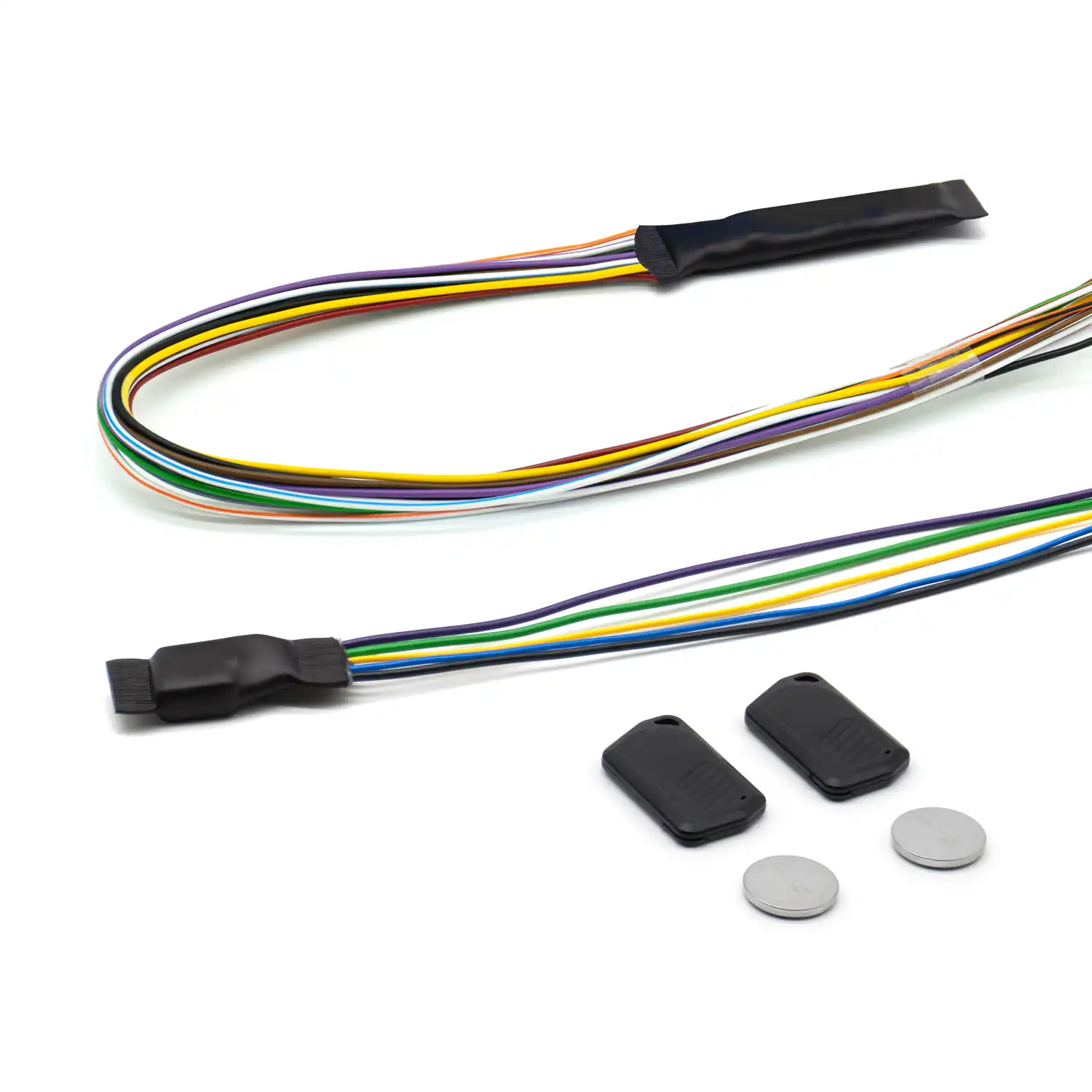

Relay included in the set
AR20
AUTHOR ALARM FD
1 piece
AUTHOR AR 20
1 piece
AUTHOR KEYFOB
2 pieces
CR2032 battery
2 pieces
Personal owner card
1 piece
User manual
1 piece

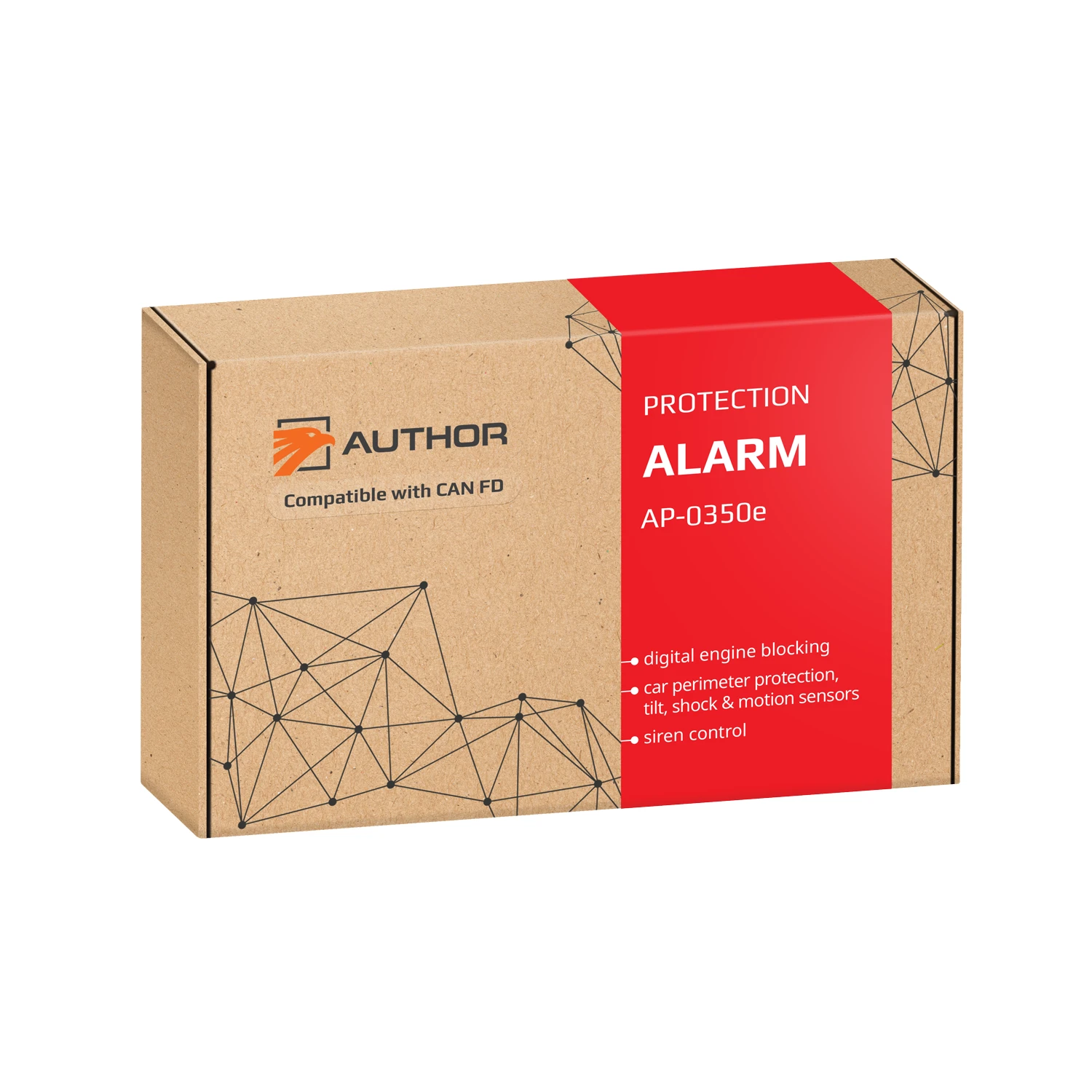

Package
1 piece
