AUTHOR TS 100 v.2

AA-0004e
Professional digital multitester
Place order
  • USB powered
    USB powered without additional sockets
  • Flashlight
    Convenient illumination of the work area
  • Battery
    Long battery life
  • Detection of digital CAN and LIN buses
    Automatic detection of digital CAN and LIN buses
  • Description
  • Features
  • Kit
The AUTHOR TS 100 v.2 digital tester is a diagnostic tool designed for car professionals who repair and install standard electronic equipment with the onboard voltage of 12 V and 24 V.

Key benefits:
  • It is designed for diagnostics of the car's standard electronic equipment with the onboard voltage of 12 V and 24 V.
  • It detects digital data buses automatically and manually.
  • It is equipped with voltmeter and pulse generator features.
  • Oscillograph mode with recording. The feature enables you to observe and analyze the signal diagram in real time.
  • The built-in rechargeable battery provides a long operating time without recharging.
  • The battery is charged and firmware is updated via USB.
  • The working area is illuminated with a built-in flashlight.
  • Display orientation is configurable both for the right- and left-handed via the Left Hand feature.
  • Built-in protection against reverse polarity. If the connection is incorrect, an error message pops up.
Dimensions
130x26x18 mm
Volume
Adjustable
Wire length
0,5 m
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
USB port
micro-USB
Battery
Yes
Buzzer
Built-In
Accelerometer
Yes
Shock sensor
Yes
Operating voltage
3,7 V
Battery voltage
3,7 V
Battery life
Up to 13 hours
Battery capacity
350 mAh
Current consumption in the Sleep mode
up to 2 mA
Battery type
Li-Ion
Autonomous power supply
Yes

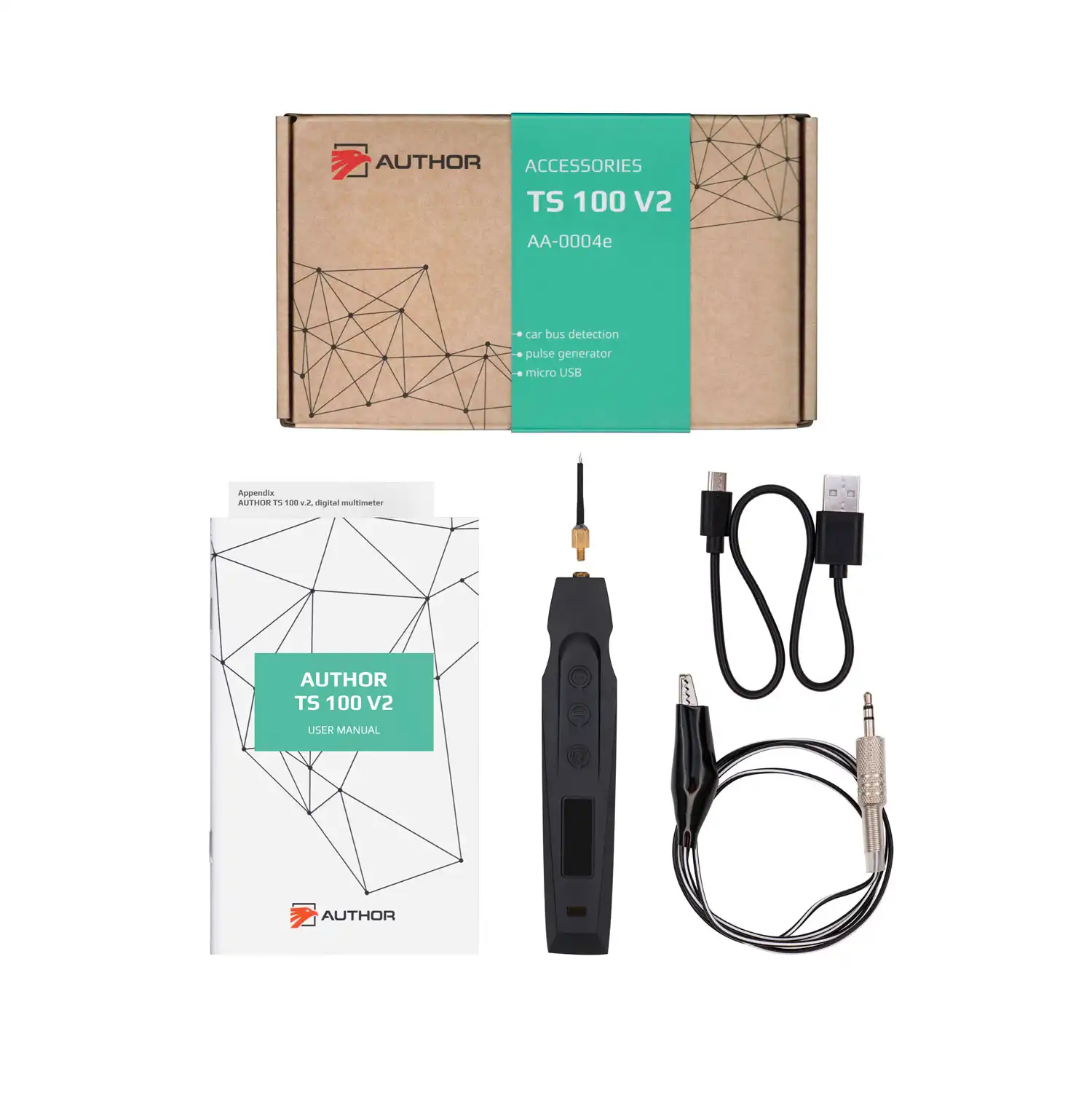

AUTHOR TS 100 v.2
1 piece
Cable with the 3.5 mm jack plug and terminal
1 piece
Cable micro-USB
1 piece
User manual
1 piece
Package
1 piece
