AUTHOR CANPROG USB
AA-0005e
CAN USB programmer
Place order
- Description
- Features
- Kit
AUTHOR CANPROG USB (hereinafter referred to as the programmer) helps you update firmware and configure AUTHOR devices via the CAN bus by using a PC. The programmer communicates with the PC via microUSB.
You can connect the programmer to the device being configured in two ways:
You can connect the programmer to the device being configured in two ways:
- Direct connection. You connect the CAN bus and power supply wires of the device to relevant outputs of the programmer. The device is a perfect aid for updating and configuring a device that is not installed in your car yet.
- Connection via the CAN bus. You connect the programmer to the car's CAN bus to which the device is connected. The device is a perfect aid for updating and configuring a device that is installed in your car already.
Dimensions
37x22x22 mm
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
USB port
micro-USB
Operating voltage
5 V
Output voltage
12 V
Output current
up to 30 mA
Control via Bluetooth
No
Autonomous power supply
No

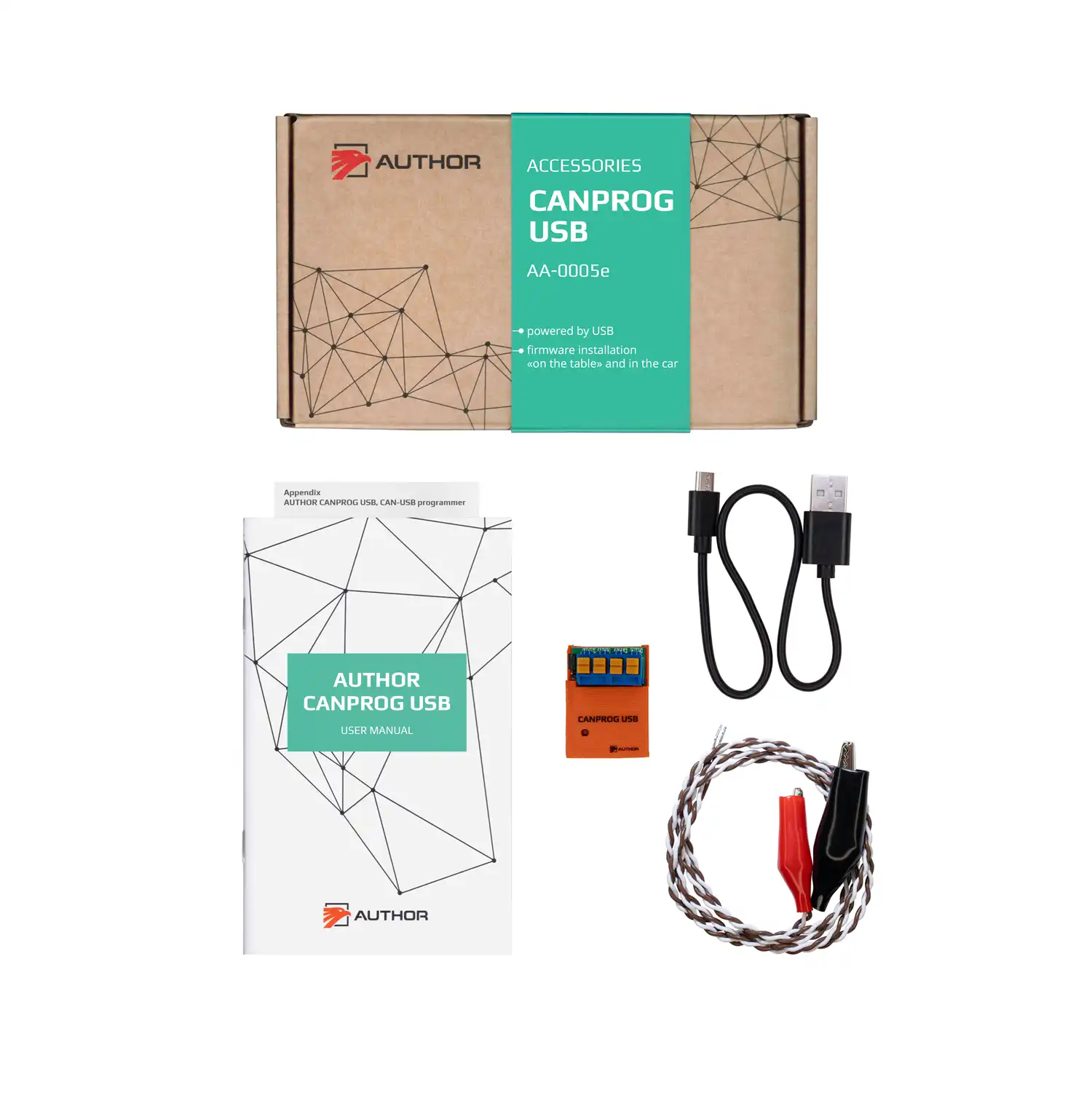

AUTHOR CANPROG USB
1 piece
microUSB - USB-A cable
1 piece
Set of wires with terminals for connection to the CAN bus
1 piece
User manual
1 piece

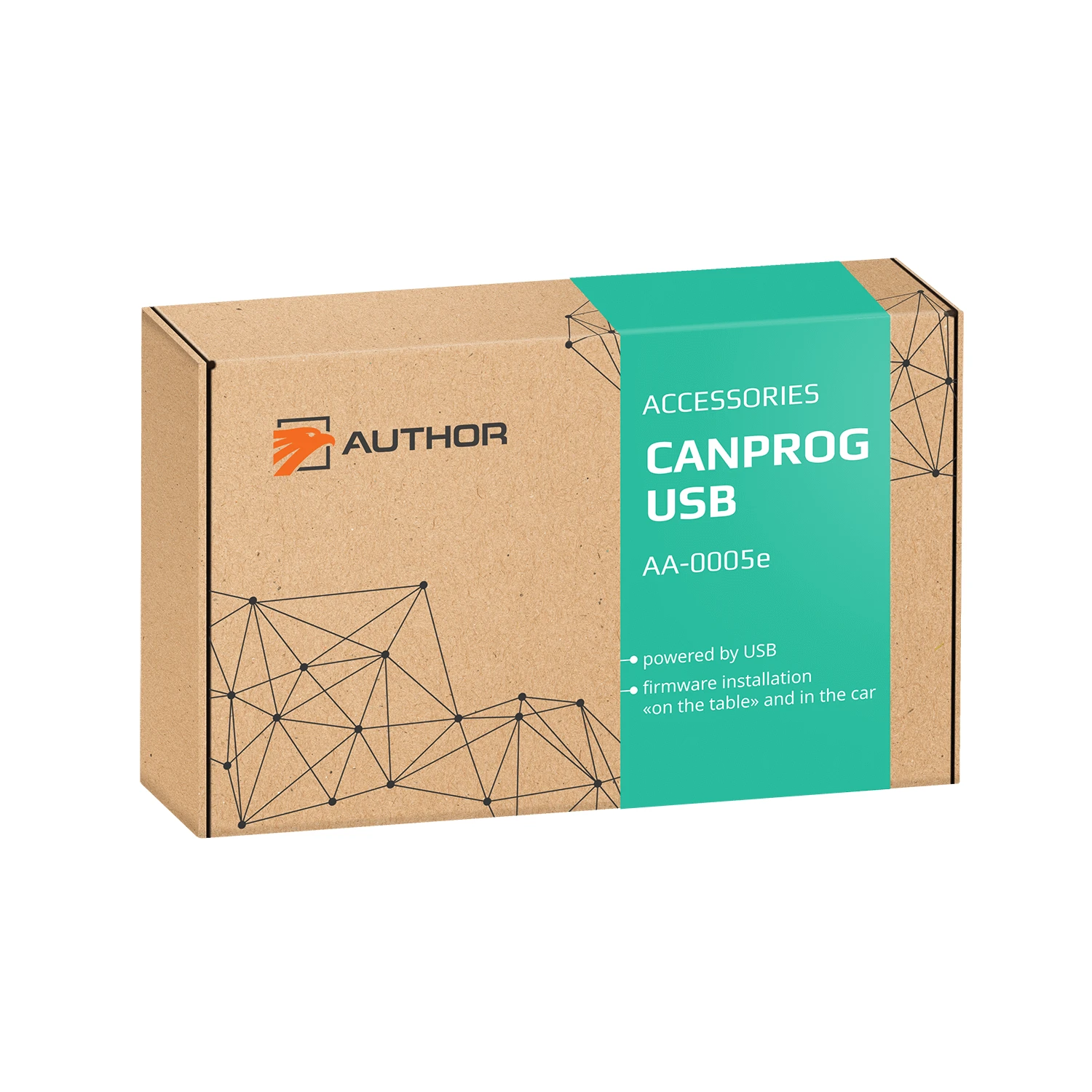

Package
1 piece
