AUTHOR TS 100 v.2 LUX
AA-0036e
Professional digital multitester with protective case
Place order
- Description
- Features
- Kit
The premium set for installers of auxiliary equipment and auto electricians includes:
- The AUTHOR TS 100 v.2 digital tester is a diagnostic tool designed for car professionals who repair and install standard electronic equipment with the onboard voltage of 12 V and 24 V.
- Case for storage and transportation
- It is designed for diagnostics of the car's standard electronic equipment with the onboard voltage of 12 V and 24 V.
- It detects digital data buses automatically and manually.
- It is equipped with voltmeter and pulse generator features.
- Oscillograph mode with recording. The feature enables you to observe and analyze the signal diagram in real time.
- The built-in rechargeable battery provides a long operating time without recharging.
- The battery is charged and firmware is updated via USB.
- The working area is illuminated with a built-in flashlight.
- Display orientation is configurable both for the right- and left-handed via the Left Hand feature.
- Built-in protection against reverse polarity. If the connection is incorrect, an error message pops up.
Dimensions
130x26x18 mm
Volume
Adjustable
Wire length
0,5 m
Dust-proof
Yes
Operating temperature range
from -40 to +80 °C
USB port
micro-USB
Battery
Yes
Buzzer
Built-In
Accelerometer
Yes
Shock sensor
Yes
Operating voltage
3,7 V
Battery voltage
3,7 V
Battery life
Up to 13 hours
Battery capacity
350 mAh
Current consumption in the Sleep mode
up to 2 mA
Battery type
Li-Ion
Autonomous power supply
Yes

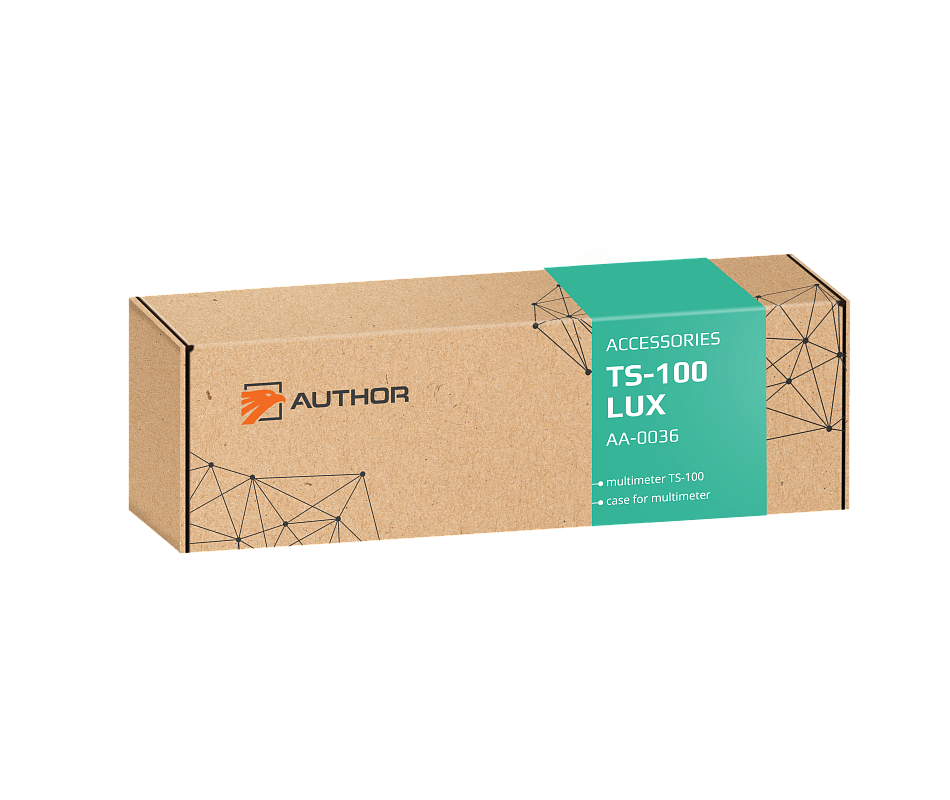

AUTHOR TS-100 v.2
1 piece
AUTHOR CASE FOR TS 100
1 piece
Cable with the 3.5 mm jack plug and terminal
1 piece
Cable micro-USB
1 piece
User manual
1 piece
Package
1 piece
